Waste Paper Recycing Automatic Carton Making Egg Tray Machine
Waste Paper Recycing Automatic Carton Making Egg Tray Machine Egg tray machine uses waste paper as raw materials to prod
Basic Info
Model NO. | 800-5000 pcs/hour |
Color | Green or Silver |
Fuel | Coal, Natural Gas, Disel, LPG and So on |
Worker Required | 6-7 Person |
Workshop Required | L:40-60m W:15m |
Processing Type | Pulp Molding Machine |
Dry Method | Natural Drying or Industrial Dryer |
Transport Package | Containers |
Specification | ISO, SGS, CE |
Trademark | sunshine |
Origin | Henan |
HS Code | 8441400000 |
Production Capacity | 50 Sets Per Month |
Product Description
Waste Paper Recycing Automatic Carton Making Egg Tray MachineEgg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.This production line mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products

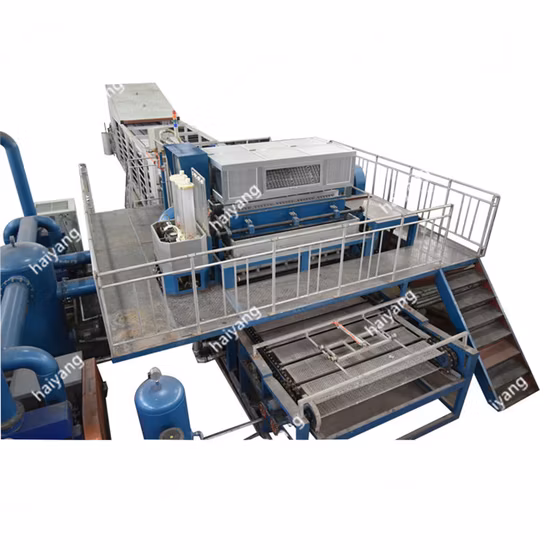

This machine mainly includes:: Pulp making system→Forming system→Drying system→Packing system
Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.

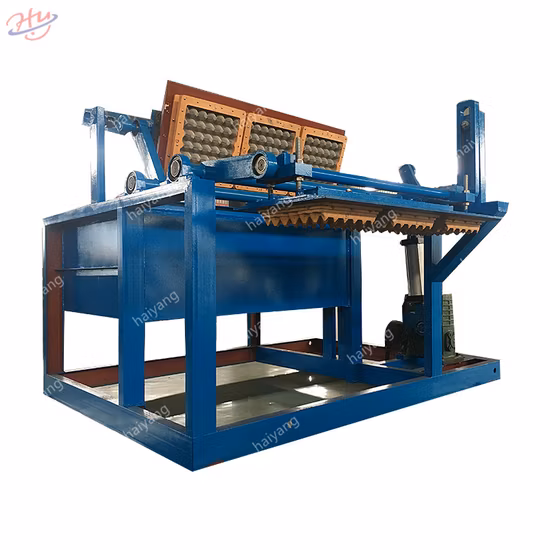

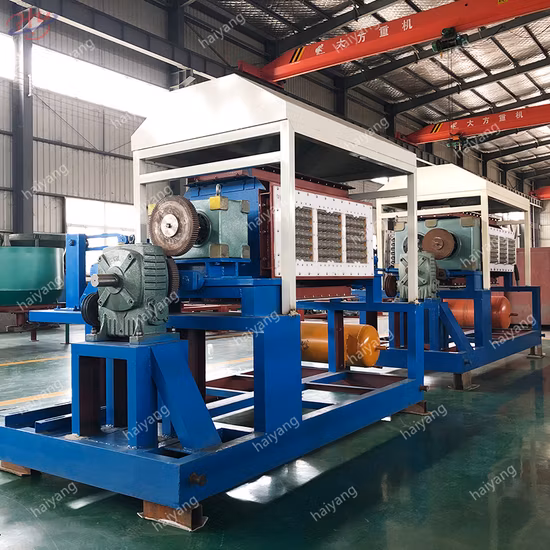

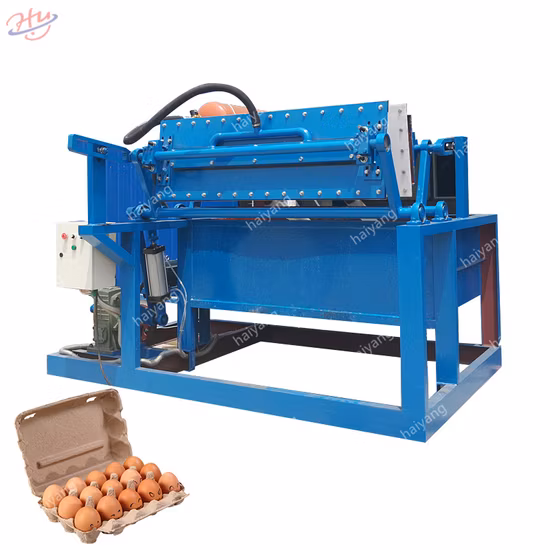

Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer,Negative pressure tank , mould, Transfer mould, baler .

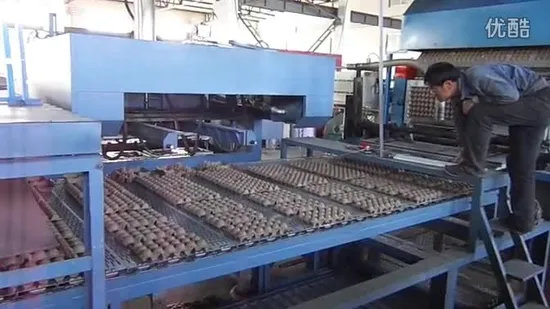

Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Production capacity for your choose:
Machine Type | Capacity | Forming Mould | Transfer Mould | Waste Paper | Water |
DTJ-800 | 800 pcs/hour | 3 pcs | 3 pcs | 90 kg/hour | 170 kg/hour |
DTJ -1000 | 1000 pcs/hour | 4 pcs | 4 pcs | 115 kg/hour | 225 kg/hour |
DTJ -1500 | 1500 pcs/hour | 4 pcs | 4 pcs | 175 kg/hour | 360 kg/hour |
DTJ -2000 | 2000 pcs/hour | 8 pcs | 2 pcs | 220 kg/hour | 450 kg/hour |
DTJ -2500 | 2500 pcs/hour | 12 pcs | 3 pcs | 290 kg/hour | 570 kg/hour |
DTJ -3000 | 3000 pcs/hour | 24 pcs | 3 pcs | 350 kg/hour | 690 kg/hour |
DTJ -4000 | 4000 pcs/hour | 32 pcs | 4 pcs | 465 kg/hour | 920 kg/hour |
DTJ -5000 | 5000 pcs/hour | 36 pcs | 3 pcs | 490 kg/hour | 975 kg/hour |
Related Parts
Note:
Production time | 15-25 days |
Payment | TT |
Package | Film packing |
Ship | CMA or MSK |
Guarantee | one year |
Quality | ISO,BV |
After sale service:
We will send technicians for your plant for instructing the installation and trial run test. The user should be in charge of come-go tickets, visa application cost, food, shelter, personnel safety and etc. The buyer should pay salary for technicians.
