Wire Mesh Cylinder Mould for Paper Machine

Basic Info

Model NO.	Aotian
Automation	Automatic
Certification	CE
Customized	Customized
Condition	New
Name	Cylinder Mould
Processing Type	Pulp Molding Machine
Diameter	1500mm
Raw Material	Cast Iron
Face Length	2100mm
Bar Diameter	12*2100
Spindle Nose	45# Round Steel Conditioning
Qty of Ss Stick	90
Color	Optional
Warranty	1 Year
Transport Package	Standard Package
Specification	customized
Trademark	Aotian
Origin	Henan
HS Code	84391000
Production Capacity	5/Month

Product Description

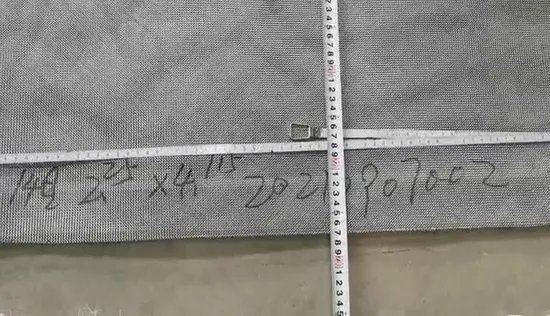

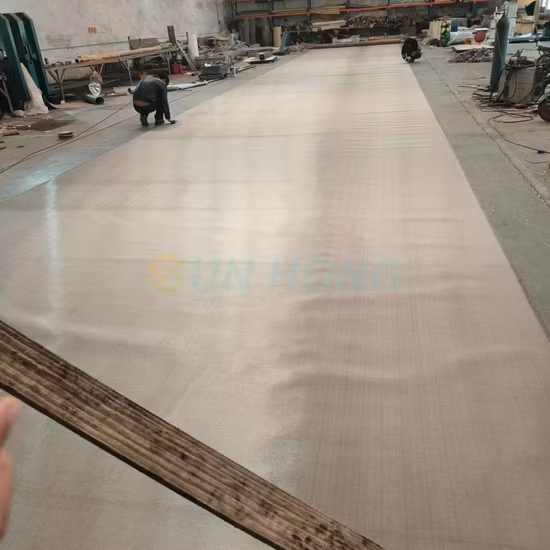

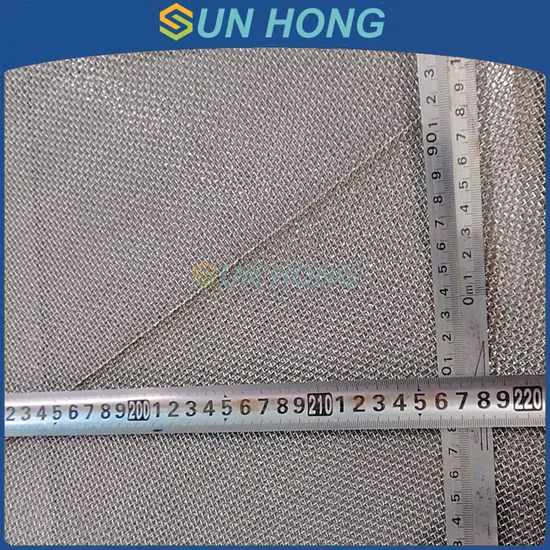

Wire mesh cylinder mould for paper machine
Product Description
This machine is used for the first set of finishing equipment behind the paper machine. The roll cylinder is operated actively, and the roll is driven by friction to complete the paper winding. By adjusting the pressure of the auxiliary arm and the cylinder of the main arm to adjust the linear pressure between the roll and the cylinder, the operation can meet the needs of different kinds of paper and make the paper rolled down from the paper machine into a compact and uniform roll paper.

Advantages1.Helps improving the drainage area and speed ,output2.Helps improving finished paper quality3.Decreasing the consumption and maintenance fees for cylinder mould and felts4.Improving proofing and durability

Size Information

Type	Stainless steel wound type
Diameter	1500mm
Face length	2100mm
Wheel spoke	Cast iron HT150
spindle nose	45# round steel conditioning
Qty of stick	90
Diameter of stick	12mm
Qty of middle supportchip	14pcs
Diameter of axis	219mm

Packing&Shipping
Products will packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.

After Sales Service
Before Purchase:
1.Help customers find the right product by professional technology and business consultation
2.Provide plans of the machines installation freely
3.Make customized products according to the clients requirements
4.Online for 24 hours

After purchase:
1.Fast and saft delivery
2.Assist our clients to bulid the equipment
3.Train the first-line operators on site
4.Regularly visit clients to solve production problems
5.Online for 24 hour
